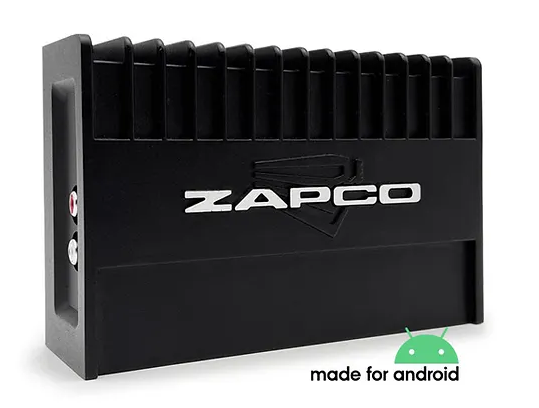

ANDROID POWER AMPLIFIER

Features and Functions

• Android Unit Class-AB Power Amplifier

• Plug & Play

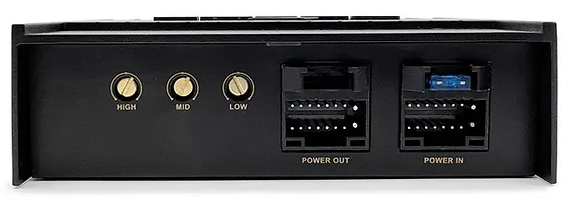

• 3-Bands Equalization

• 4 Balanced High-Level Inputs

• High-Quality OP

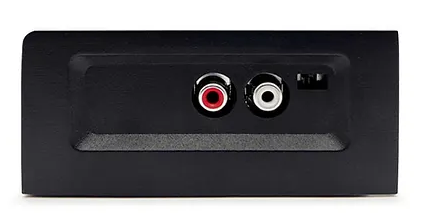

• 2 RCA Outputs for Amplified Subwoofer

• Over-Current and Over-Voltage Protection

• High Temperature Protection

Specifications

• Power @ 4Ω: 4 x 35 watts

• Power Max: 4 x 70 watts

• THD @ Rated Power  < 0.1%

• Signal to Noise Ratio > 85dB

• Channel separation > 70dB

• Frequency Response 20Hz to 20KHz

• Dimensions in mm: 103(W) x 45(H) x 151(L)
